Lecture:9.1- Theory of Pipelining in Computer Architecture (COA)

Theory of Pipelining in Computer Architecture

Need of Pipelining:

1.    Circuits.

2.    Re-arrangement of hardware.

P1 → O → P → R    =  3s

P2 →  —-  —-  —- O → P → R    = 6s

P3 →  —-   —-  —-   —-   —-  —-  O → P → R    = 9s

Average Time ( 9/3 ) =  3s.

P1 → O → P → R     = 3s

P2 → —- O → P → R    = 4s

P3 → —-  —-  O → P → R   = 5s

Average Time ( 5/3 ) =  1.66s

Difference between Pipelined and Non-pipelined System:

Sr. No.	Topic	Pipe-Lined System	Non-Pipelined System
1	Working	In this, multiple instructions are overlapped during execution.	In this, processes like decoding,fetching,execution,and writing memory are merged into a single unit or a single step.
2	Execution Time	Many instructions are executed at the same time and Execution time is comparatively less	Only one instruction is executed at the same time and Execution time is comparatively high.
3	Dependency on CPU Scheduler	The efficiency of the pipelining system depends upon the effectiveness of the CPU scheduler.	The efficiency is not dependent on the CPU scheduler.
4	CPU Cycles Needed	Execution is done in fewer CPU cycles	Execution requires a greater number of CPU cycles comparatively

Definition of pipelining:

1.    Pipelining is the process of arrangement of hardware elements of CPU such that its overall performance is increased.

2.    Simultaneous execution of more, than one instance takes place in pipelined processor.

3.    In pipelining multiple instances are overlapped in execution.

 Five Stages of Pipelining:

1.     Instruction Fetch (IF)

2.     Instruction Decode (ID)

3.     Execute (EX)

4.     Memory Access (MEM)

5.     Write Back (WB)

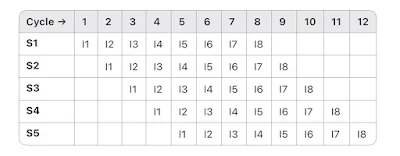

P = 8I, I₁ – I₈

Where:

1.    k = Number of pipeline stages (5)

2.    n = Number of instructions (8)



1.    Pipelined Execution Time:

          = k + (n - 1)

          = 5 + (8 - 1)

          = 5 + 7

          = 12

         Non- Pipelined Execution Time: 5 × 8 = 40





2.    CPI Calculation:

          CPI (Clock Cycles Per Instruction)



What is Pipelining?

Pipelining is the process of accumulating instruction from the processor through a pipeline. It allows storing and executing instructions in an orderly process. It is also known as pipeline processing.

Pipelining is a technique where multiple instructions are overlapped during execution. Pipeline is divided into stages and these stages are connected with one another to form a pipe like structure. Instructions enter from one end and exit from another end.

Pipelining increases the overall instruction throughput.

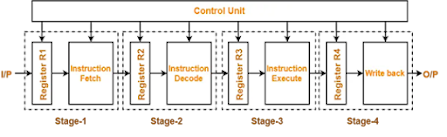

In pipeline system, each segment consists of an input register followed by a combinational circuit. The register is used to hold data and combinational circuit performs operations on it. The output of combinational circuit is applied to the input register of the next segment.

Pipeline system is like the modern-day assembly line setup in factories. For example, in a car manufacturing industry, huge assembly lines are setup and at each point, there are robotic arms to perform a certain task, and then the car moves on ahead to the next arm.

In general, the pipeline organization is applicable for two areas of computer design which includes:

1.    Arithmetic Pipeline

2.    Instruction Pipeline

1. Arithmetic Pipeline:

An arithmetic pipeline is a technologically shaped processing pipeline designed to accelerate the implementation of arithmetic operations. It's an ideal part of the general processor figure, particularly specializing in improving the overall performance of mathematical computations.

Components

• Addition Stage: In this stage, the pipeline plays the addition operation. It's a crucial mathematical operation and is frequently broken down into sub-parts for efficient processing.
• Multiplication Stage: For more complicated mathematics operations, which encompass multiplication, an intense level is covered in the pipeline. Multiplication consists of a sequence of partial products, and an arithmetic pipeline can simplify this device.
• Division Stage: Division is any other arithmetic operation that can take advantage of pipelining. Dividing various involves more than one step, and breaking down the approach into pipeline ranges can decorate the general tempo of execution.

Advantages:

• Parallelism in Arithmetic Operations: Arithmetic pipelines take advantage of parallelism by breaking down complex operations into small parts. This allows the concurrent execution of a couple of arithmetic operations, considerably enhancing throughput.
• Optimized Resource Utilization: The pipeline structure allows for the best usage of processing resources. While one arithmetic operation is within the multiplication stage, every other can be within the addition stage, maximizing the performance of the processor.
• Enhanced Computational Speed: By dividing arithmetic operations into smaller, feasible phases, the overall pace of computation is expanded. This is mainly critical in programs in which mathematical calculations are a large element, which includes medical computing or photograph processing.

2. Instruction Pipeline:

An Instruction Pipeline is a key component of a processor's structure designed to facilitate the concurrent execution of a couple of commands. It breaks down the execution of instructions into different phases, allowing one-of-a-type spans to function simultaneously on unique instructions.

Components:

• Instruction Fetch (IF): The first stage entails fetching the instruction from memory. The software program counter is used to decide the address of the following approach.
• Instruction Decode (ID): In this phase, the fetched instruction is decoded to determine the operation to be completed and to understand the operands involved.
• Execution (EX): The actual computation or operation through the instruction takes place in this stage. It might also additionally contain mathematics or logical operations.
• Memory Access (MEM): If instruction requires access to memory, this stage is wherein data is analyzed from or written to memory.
• Write Back (WB): The final phase includes registering the results once more to report or memory and finishing the execution of these.

Advantages:

• Improved Throughput: The instruction pipeline allows for a continuous drift of commands through the processor, enhancing the usual throughput. While one instruction is within the execution phase, every other may be within the decoding phase, resulting in better resource utilization.
• Faster Program Execution: By overlapping the execution of instructions, the time taken to execute a series of commands is reduced. This outcome in faster software execution is a vital element in enhancing the general performance of a PC system.
• Effective Resource Management: Instructional pipelining allows powerful manipulation of sources by permitting tremendous levels of the pipeline to operate concurrently. This contributes to a good and streamlined execution of commands.
