Practice Problems Based on Direct Mapping
Question-04: Consider a
direct mapped cache of size 32 KB with block size 32 bytes. The CPU generates
32-bit addresses. The number of bits needed for cache indexing and the number
of tag bits are respectively-
1) 10,
17
2) 10,
22
3) 15,
17
4) 5,
17
Solution:
Given-
Cache memory size
= 32 KB
Block size = Frame
size = Line size = 32 bytes
Number of bits in
physical address = 32 bits
Number of Bits in

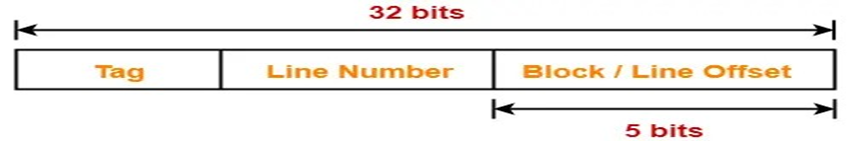

Block Offset-
We have,
Block size
= 32 bytes
= 25
bytes
Thus, Number of
bits in block offset = 5 bits
Number of Bits in Line
Number-
Total number of lines in
cache
= Cache size / Line size
= 32 KB / 32 bytes
= 210 lines
Thus, Number of bits in
line number = 10 bits
Number of Bits Required for
Cache Indexing-
Number of bits required
for cache indexing
= Number of bits in line
number
= 10 bits
Number Of Bits in Tag-
Number of bits in tag
= Number of bits in
physical address – (Number of bits in line number + Number of bits in block
offset)
= 32 bits – (10 bits + 5
bits)
= 32 bits – 15 bits
= 17 bits
Thus, Number of bits in
tag = 17 bits
Thus, Option (A) is
correct.
Question-05: Consider a
machine with a byte addressable main memory of 232 bytes divided
into blocks of size 32 bytes. Assume that a direct mapped cache having 512
cache lines is used with this machine. The size of the tag field in bits is
______.
Solution-
Given-
Main memory size = 232
bytes
Block size = Frame size =
Line size = 32 bytes
Number of lines in cache
= 512 lines
Number of Bits in
Physical Address-
We have,
Size of main memory
= 232 bytes
Thus, Number of bits in
physical address = 32 bits
Number of Bits in Block
Offset-
We have,
Block size
= 32 bytes
= 25 bytes
Thus, Number of bits in
block offset = 5 bits

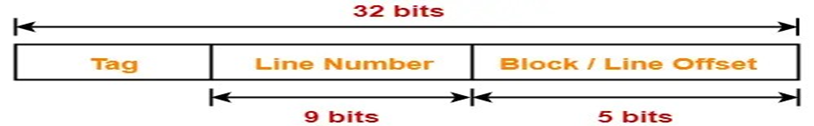

Number of Bits in Line
Number-
Total number of lines in
cache
= 512 lines
= 29 lines
Thus, Number of bits in
line number = 9 bits
Number Of Bits in Tag-
Number of bits in tag
= Number of bits in physical
address – (Number of bits in line number + Number of bits in block offset)
= 32 bits – (9 bits + 5
bits)
= 32 bits – 14 bits
= 18 bits
Thus, Number of bits in
tag = 18 bits
